B65813N0630A048

B65813N0630A048

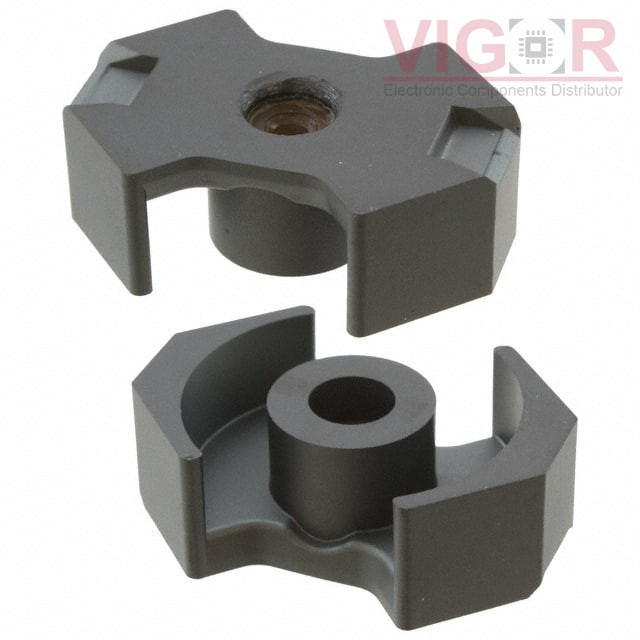

Image is for reference,
please contact us to get the real picture

Part No :

B65813N0630A048

Manufacturer
TDK EPCOS
Description
FERRITE CORE RM 630NH N48 2PCS
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
B65813N0630A048 PDF
Availability
687 pieces
Unit Price
$4.78000

Current price of B65813N0630A048 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65813N0630A048 Specifications
Type Description
Series:B65813
Package:Box
Part Status:Active
Core Type:RM
Supplier Device Package:RM 10
Material:N48
Diameter:-
Inductance Factor (Al):630 nH
Tolerance:±3%
Gap:Gapped
Effective Permeability (µe):254
Initial Permeability (µi):-
Core Factor (ΣI/A) mm-1:0.5
Effective Length (le) mm:42
Effective Area (Ae) mm²:83
Minimum Core Cross Section (Amin) mm²:-
Effective Magnetic Volume (Ve) mm³:3490
Finish:Uncoated
Height:9.35mm
Length:28.50mm
Width:13.50mm
