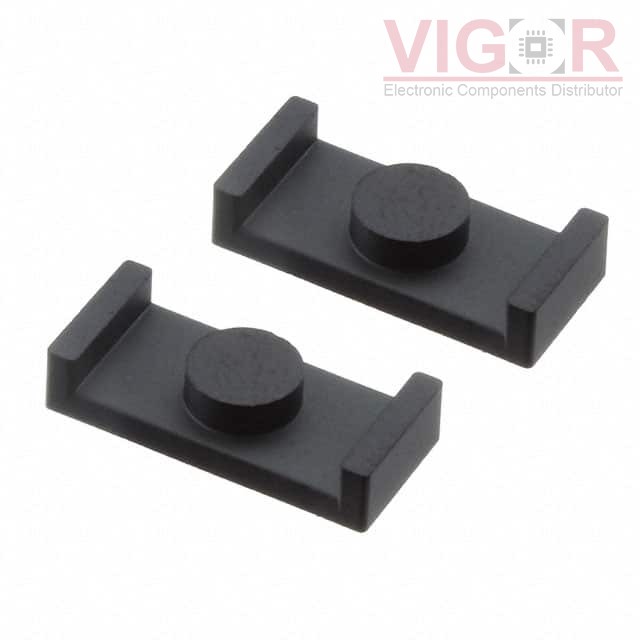

B65513J0000R092

Image is for reference,
please contact us to get the real picture

Part No :: B65513J0000R092

Manufacturer: TDK EPCOS

Description: FERRITE CORE ER 1.1UH N92 2PCS

Catalog: Ferrite Cores

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: B65513J0000R092 PDF

Availability: 0 pieces

Unit Price: ~~$0.70158~~

Current price of B65513J0000R092 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65513J0000R092 Specifications

Type	Description
Series:	B65513
Package:	Box
Part Status:	Active
Core Type:	ER
Supplier Device Package:	ER 14.5 x 6
Material:	N92
Diameter:	-
Inductance Factor (Al):	1.1 µH
Tolerance:	-20%, +30%
Gap:	Ungapped
Effective Permeability (µe):	970
Initial Permeability (µi):	1500
Core Factor (ΣI/A) mm^-1:	1.1
Effective Length (le) mm:	19
Effective Area (Ae) mm²:	17.6
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	333
Finish:	Uncoated
Height:	2.95mm
Length:	14.50mm
Width:	6.70mm

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

PC95EL15.5X5.8-Z

FERRITE CORE EL 3.68UH 2PC SET

HOT

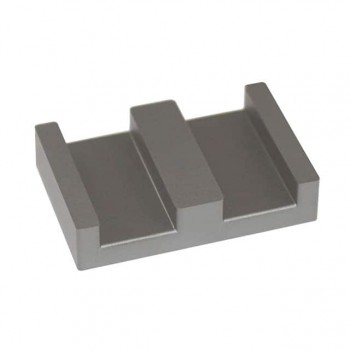

E43/10/28-3F4

FERRITE CORE

HOT

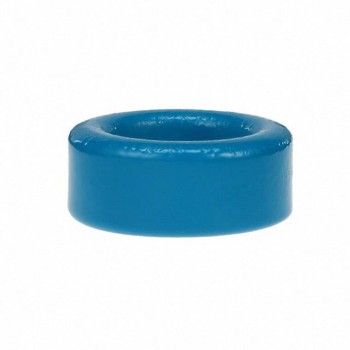

B64290L0626X830
