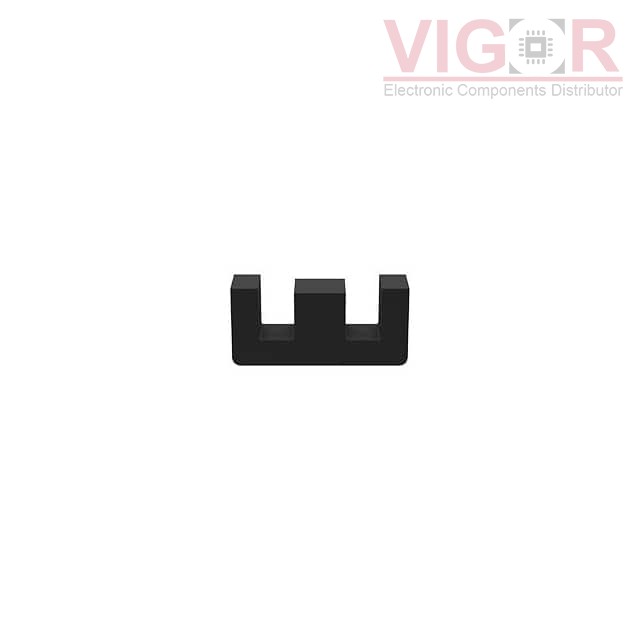

B66233G0000X197

Image is for reference,
please contact us to get the real picture

Part No :: B66233G0000X197

Manufacturer: TDK EPCOS

Description: FERRITE CORE

Catalog: Ferrite Cores

Shipped from: HK warehouse

Expected Shipping Date: Jul 30 - Aug 03 2025

DataSheet: B66233G0000X197 PDF

Availability: 0 pieces

Unit Price: ~~$0.84056~~

Current price of B66233G0000X197 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B66233G0000X197 Specifications

Type	Description
Series:	-
Package:	Box
Part Status:	Active
Core Type:	E
Supplier Device Package:	E 32 x 16 x 11
Material:	N97
Diameter:	-
Inductance Factor (Al):	3 µH
Tolerance:	-20%, +30%
Gap:	Ungapped
Effective Permeability (µe):	1820
Initial Permeability (µi):	2300
Core Factor (ΣI/A) mm^-1:	0.76
Effective Length (le) mm:	74
Effective Area (Ae) mm²:	97
Minimum Core Cross Section (Amin) mm²:	95
Effective Magnetic Volume (Ve) mm³:	7187
Finish:	Uncoated
Height:	16.40mm
Length:	32.00mm
Width:	11.00mm

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

B65513J0000R097

FERRITE CORE ER 1.5UH N97 2PCS

HOT

PQ20/16-3C95

FERRITE CORE 2PC SET

HOT

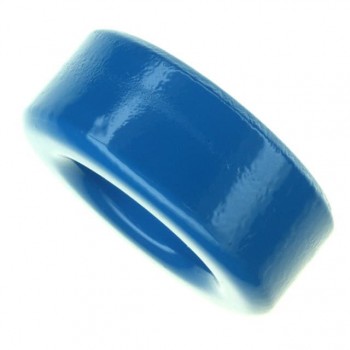

B64290L0659X830
