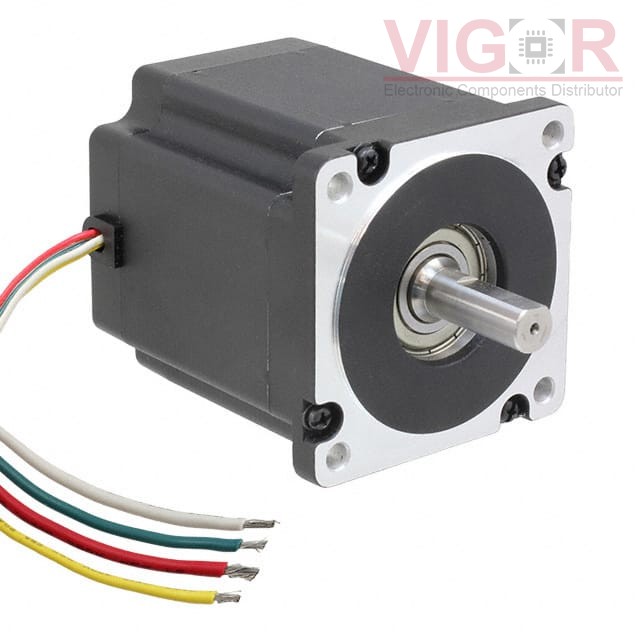

QSH8618-96-55-700

QSH8618-96-55-700

Image is for reference,
please contact us to get the real picture

Part No :

QSH8618-96-55-700

Manufacturer
TRINAMIC Motion Control GmbH
Description
STEP MOTOR HYBRID BIPOLAR 2.56V
Catalog
Stepper Motors
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
QSH8618-96-55-700 PDF
Availability
4 pieces
Unit Price
$283.03000

Current price of QSH8618-96-55-700 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

QSH8618-96-55-700 Specifications
Type Description
Series:QMot QSH8618
Package:Bulk
Part Status:Active
Type:Hybrid
Coil Type:Bipolar
Voltage - Rated:2.56VDC
Current Rating (Amps):5.5 A
Steps per Revolution:200
Step Angle:1.8°
Accuracy:±5%
Torque - Holding (oz-in / mNm):991.28 / 7000
Size / Dimension:Square - 3.380" x 3.380" (85.85mm x 85.85mm)
NEMA Frame Size:34
Diameter - Shaft:0.500" (12.70mm)
Length - Shaft and Bearing:1.310" (33.27mm)
Mounting Hole Spacing:2.740" (69.60mm)
Termination Style:Wire Leads
Operating Temperature:-20°C ~ 50°C
Coil Resistance:0.45 Ohms
Features:Flatted Shaft
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 23KM-K144B

23KM-K144B

STEPPER MOTOR HYBRID BIPOLAR 24V

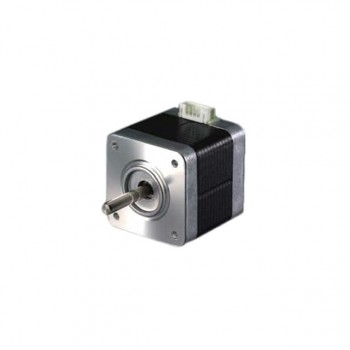

HOT 17PY-Z142B

17PY-Z142B

STEPPER MOTOR HYBRID BIPOLAR 24V

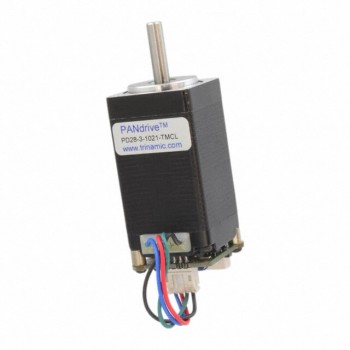

HOT PD28-3-1021-TMCL
