Type | Description |
---|---|

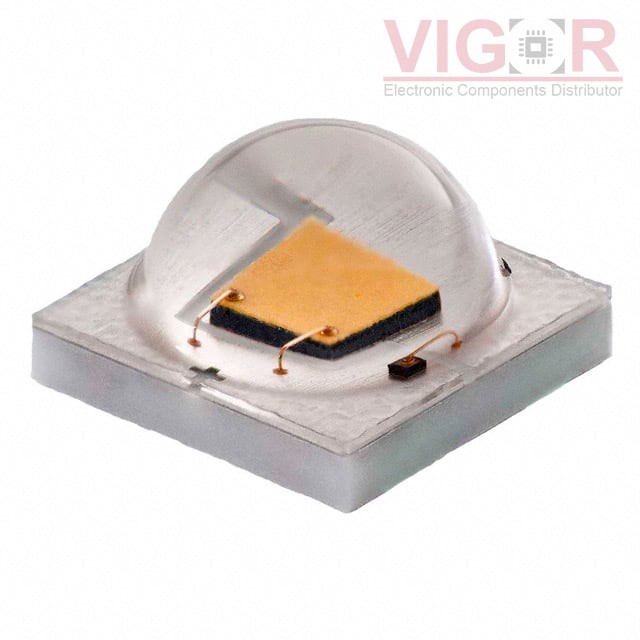

Series: | XLamp® XP-E2 |
Package: | Tape & Reel (TR) |
Part Status: | Active |
Color: | White, Neutral |
CCT (K): | 4000K |
Flux @ 85°C, Current - Test: | 118lm (114lm ~ 122lm) |
Flux @ 25°C, Current - Test: | - |
Current - Test: | 350mA |
Voltage - Forward (Vf) (Typ): | 2.9V |
Lumens/Watt @ Current - Test: | 116 lm/W |
CRI (Color Rendering Index): | 75 (Typ) |
Current - Max: | 1A |
Viewing Angle: | 110° |
Mounting Type: | Surface Mount |
Package / Case: | 1414 (3535 Metric) |
Supplier Device Package: | - |
Size / Dimension: | 0.136" L x 0.136" W (3.45mm x 3.45mm) |
Height - Seated (Max): | 0.094" (2.39mm) |
