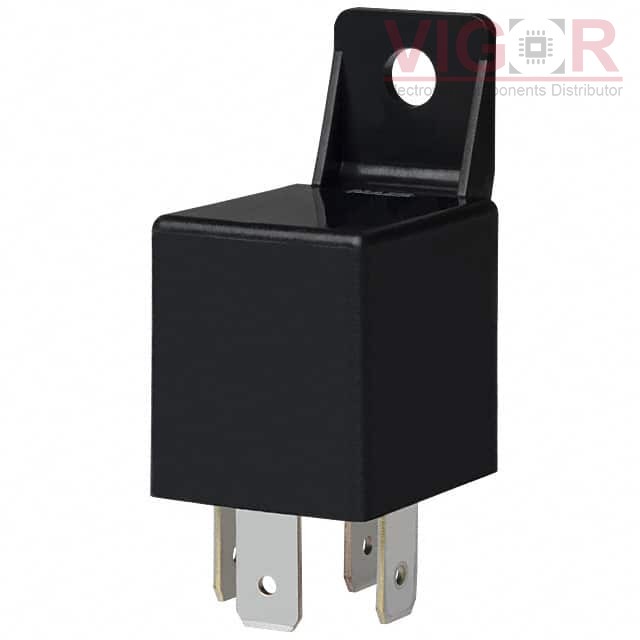

CB1A-R-M-24V

Image is for reference,
please contact us to get the real picture

Part No :: CB1A-R-M-24V

Manufacturer: Panasonic

Description: RELAY AUTOMOTIVE SPST 20A 24V

Catalog: Automotive Relays

Shipped from: HK warehouse

Expected Shipping Date: Jul 21 - Jul 25 2025

DataSheet: CB1A-R-M-24V PDF

Availability: 629 pieces

Unit Price: ~~$5.86000~~

Current price of CB1A-R-M-24V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CB1A-R-M-24V Specifications

Type	Description
Series:	CB
Package:	Bulk
Part Status:	Active
Coil Type:	Non Latching
Coil Current:	84 mA
Coil Voltage:	24VDC
Contact Form:	SPST-NO (1 Form A)
Contact Rating (Current):	20 A
Switching Voltage:	28VDC - Nom
Must Operate Voltage:	14 VDC
Must Release Voltage:	2.4 VDC
Operate Time:	15 ms
Release Time:	15 ms
Features:	Resistor, Sealed - Fully
Mounting Type:	Chassis Mount
Termination Style:	Quick Connect - 0.250" (6.3mm)
Operating Temperature:	-40°C ~ 85°C

Please confirm the specifications of the products when ordering.
