ALDP1F09W

ALDP1F09W

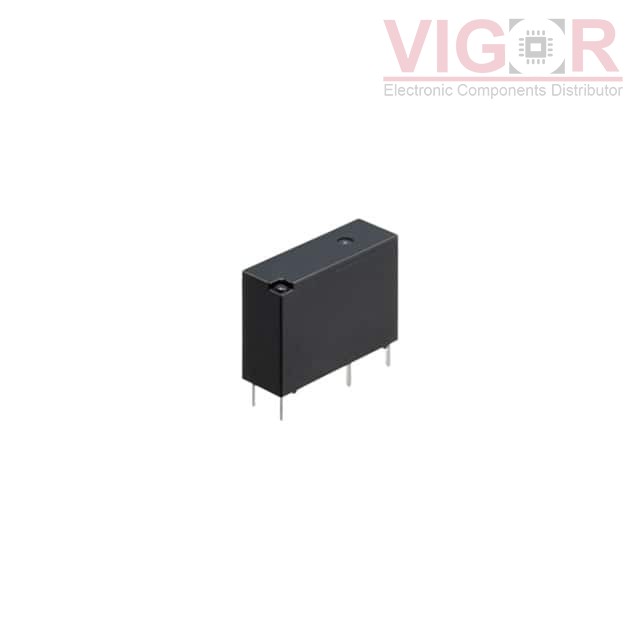

Image is for reference,
please contact us to get the real picture

Part No :

ALDP1F09W

Manufacturer
Panasonic
Description
RELAY GEN PURPOSE SPST 5A 9V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Jul 24 - Jul 28 2025
DataSheet
ALDP1F09W PDF
Availability
0 pieces
Unit Price
$1.94000

Current price of ALDP1F09W is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ALDP1F09W Specifications
Type Description
Series:*
Package:Tray
Part Status:Active
Mounting Type:Through Hole
Coil Voltage:9VDC
Contact Form:SPST-NO (1 Form A)
Contact Rating (Current):5 A
Switching Voltage:277VAC - Max
Coil Current:22.2 mA
Coil Type:Non Latching
Features:-
Termination Style:PC Pin
Seal Rating:-
Coil Insulation:Class F
Must Operate Voltage:6.75 VDC
Must Release Voltage:0.45 VDC
Operate Time:10 ms
Release Time:10 ms
Operating Temperature:-40°C ~ 85°C
Contact Material:Silver Nickel (AgNi)
Relay Type:General Purpose
