DPX161576DT-8011B1

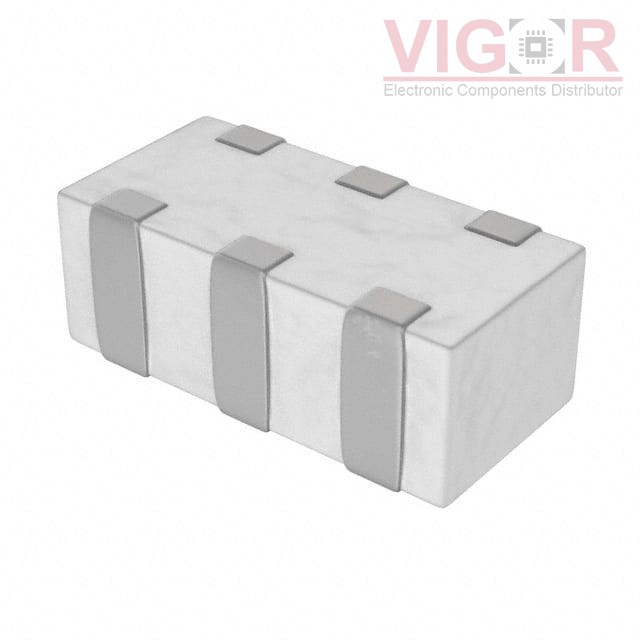

Image is for reference,
please contact us to get the real picture

Part No :: DPX161576DT-8011B1

Manufacturer: TDK Corporation

Description: RF DIPLEXER 873.5/1575.42MZ 0603

Catalog: RF Multiplexers

Shipped from: HK warehouse

Expected Shipping Date: Jul 26 - Jul 30 2025

DataSheet: DPX161576DT-8011B1 PDF

Availability: 6882 pieces

Unit Price: ~~$1.08000~~

Current price of DPX161576DT-8011B1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DPX161576DT-8011B1 Specifications

Type	Description
Series:	DPX
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Diplexer
Frequency Bands (Low / High):	806MHz ~ 941MHz / 1574.42MHz ~ 1576.42MHz
Low Band Attenuation (min / max dB):	20.00dB / -
High Band Attenuation (min / max dB):	18.00dB / -
Return Loss (Low Band / High Band):	14.0dB / 14.0dB
Mounting Type:	Surface Mount
Package / Case:	0603 (1608 Metric), 6 Lead
