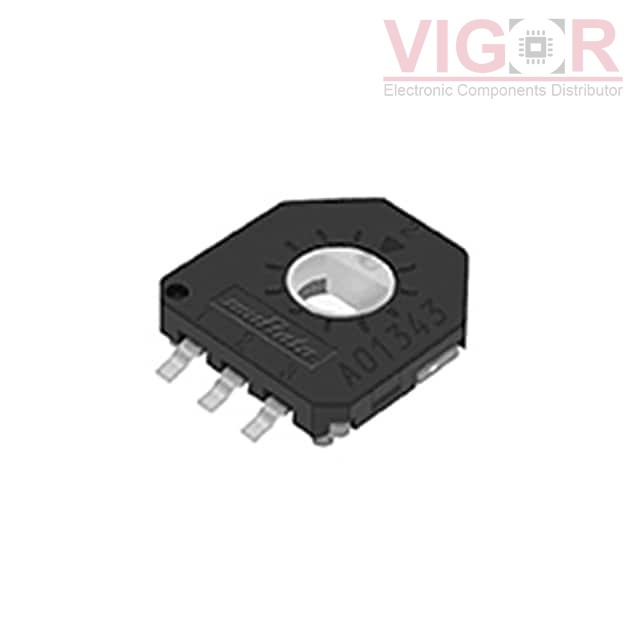

SV03A103AEA01R00

SV03A103AEA01R00

Image is for reference,
please contact us to get the real picture

Part No :

SV03A103AEA01R00

Manufacturer
TOKO / Murata
Description
SENSOR ROTARY 320DEG SMD
Catalog
Position Sensors - Angle, Linear Position Measuring
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
SV03A103AEA01R00 PDF
Availability
602 pieces
Unit Price
$1.40000

Current price of SV03A103AEA01R00 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SV03A103AEA01R00 Specifications
Type Description
Series:SV03
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Last Time Buy
For Measuring:Rotary Position
Technology:Resistive
Rotation Angle - Electrical, Mechanical:0° ~ 320°, (0° ~ 333.3°)
Linear Range:-
Output:Analog Voltage
Output Signal:-
Actuator Type:Hole for Shaft
Linearity:±2%
Resistance:10 kOhms
Resistance Tolerance:±30%
Voltage - Supply:-
Mounting Type:Surface Mount
Termination Style:SMD (SMT) Tab
Operating Temperature:-40°C ~ 125°C
Package / Case:4-SMD, Gull Wing
Supplier Device Package:4-SMD
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT SGD-120-3

SGD-120-3

SENSOR LINEAR 3048MM CONNECTOR

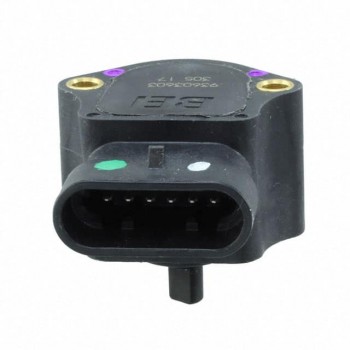

HOT 93603603

93603603

SENSOR ROTARY 360DEG CONNECTOR

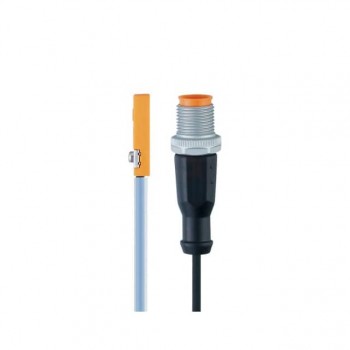

HOT MK5214
