PA0009-S

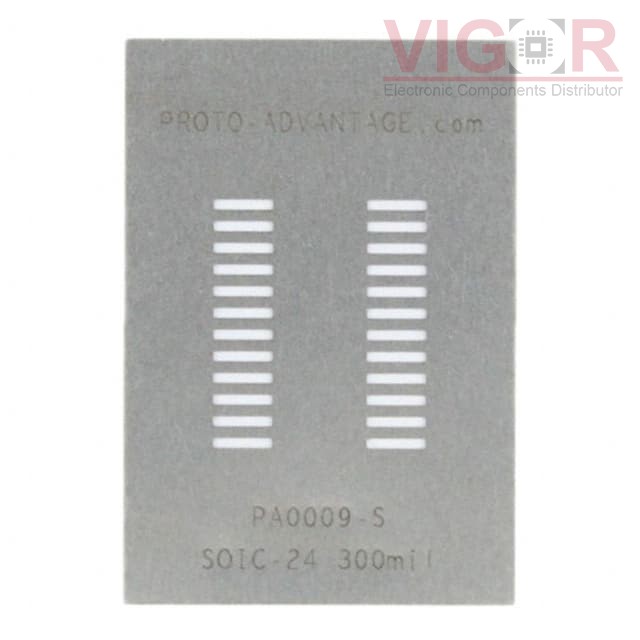

Image is for reference,
please contact us to get the real picture

Part No :

PA0009-S

Manufacturer
Chip Quik, Inc.
Description
SOIC-24 STENCIL
Catalog
Solder Stencils, Templates
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
PA0009-S PDF
Availability
0 pieces
Unit Price
$11.59000

Current price of PA0009-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:Proto-Advantage PA
Package:Bulk
Part Status:Active
Type:SOIC
Number of Positions:24
Pitch:0.050" (1.27mm)
Outer Dimension:1.300" L x 0.900" W (33.02mm x 22.86mm)
Inner Dimension:-
Thermal Center Pad:-
Material:Stainless Steel
