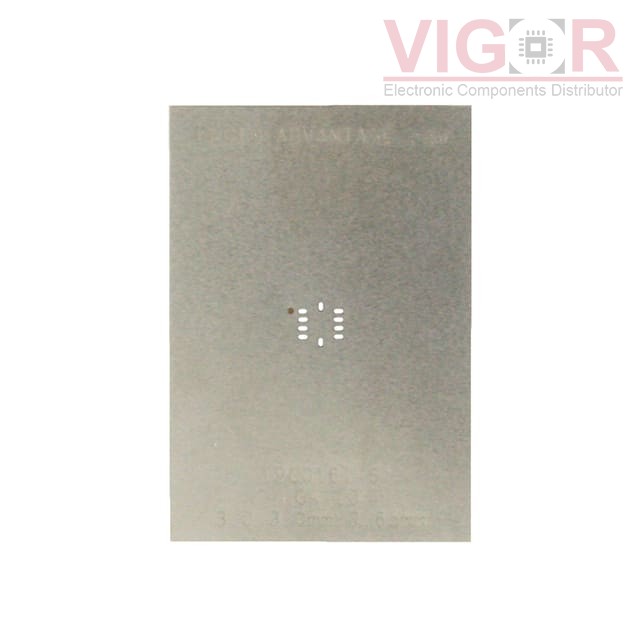

IPC0161-S

IPC0161-S

Image is for reference,
please contact us to get the real picture

Part No :

IPC0161-S

Manufacturer
Chip Quik, Inc.
Description
LGA-10 (0.65MM PITCH, 3X3MM BODY
Catalog
Solder Stencils, Templates
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
IPC0161-S PDF
Availability
0 pieces
Unit Price
$11.59000

Current price of IPC0161-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IPC0161-S Specifications
Type Description
Series:Proto-Advantage IPC
Package:Bulk
Part Status:Active
Type:LGA
Number of Positions:10
Pitch:0.026" (0.65mm)
Outer Dimension:1.300" L x 0.900" W (33.02mm x 22.86mm)
Inner Dimension:0.118" L x 0.118" W (3.00mm x 3.00mm)
Thermal Center Pad:-
Material:Stainless Steel
