IPC0047-S

IPC0047-S

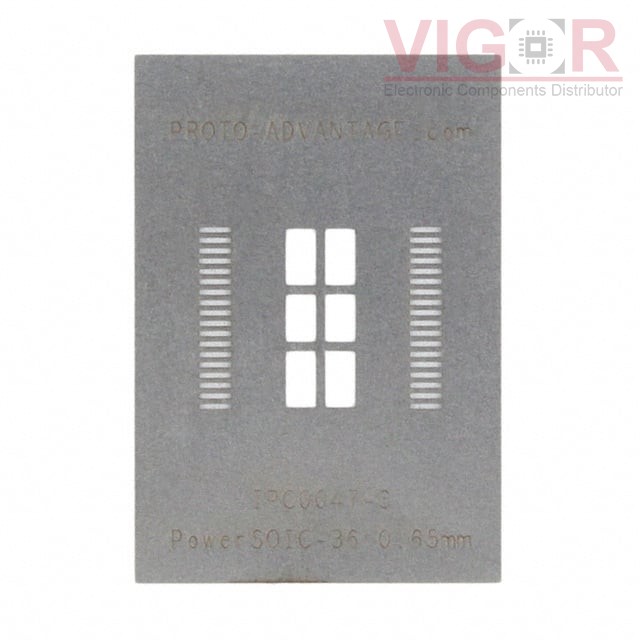

Image is for reference,
please contact us to get the real picture

Part No :

IPC0047-S

Manufacturer
Chip Quik, Inc.
Description
POWERSOIC-36/PSOP-36/HSOP-36 STE
Catalog
Solder Stencils, Templates
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
IPC0047-S PDF
Availability
0 pieces
Unit Price
$11.59000

Current price of IPC0047-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IPC0047-S Specifications
Type Description
Series:Proto-Advantage IPC
Package:Bulk
Part Status:Active
Type:PowerSOIC
Number of Positions:36
Pitch:0.026" (0.65mm)
Outer Dimension:1.300" L x 0.900" W (33.02mm x 22.86mm)
Inner Dimension:0.630" L x 0.433" W (16.00mm x 11.00mm)
Thermal Center Pad:0.630" L x 0.244" W (16.00mm x 6.20mm)
Material:Stainless Steel
