PA0036-S

PA0036-S

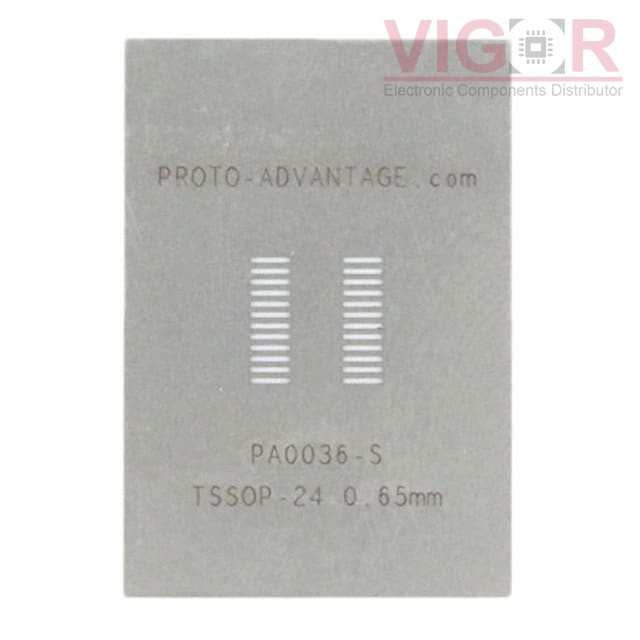

Image is for reference,
please contact us to get the real picture

Part No :

PA0036-S

Manufacturer
Chip Quik, Inc.
Description
TSSOP-24 STENCIL
Catalog
Solder Stencils, Templates
Shipped from
HK warehouse
Expected Shipping Date
Jul 24 - Jul 28 2025
DataSheet
PA0036-S PDF
Availability
0 pieces
Unit Price
$11.59000

Current price of PA0036-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PA0036-S Specifications
Type Description
Series:Proto-Advantage PA
Package:Bulk
Part Status:Active
Type:TSSOP
Number of Positions:24
Pitch:0.026" (0.65mm)
Outer Dimension:1.300" L x 0.900" W (33.02mm x 22.86mm)
Inner Dimension:-
Thermal Center Pad:-
Material:Stainless Steel
