7814Z-1-023E

7814Z-1-023E

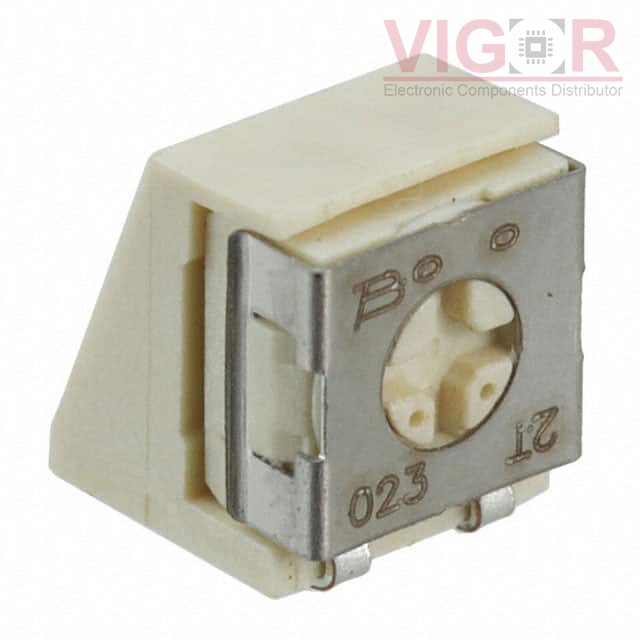

Image is for reference,
please contact us to get the real picture

Part No :

7814Z-1-023E

Manufacturer
J.W. Miller / Bourns
Description
SWITCH ROTARY DIP SPDT 100MA 16V
Catalog
DIP Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 17 - Jul 21 2025
DataSheet
7814Z-1-023E PDF
Availability
373 pieces
Unit Price
$1.83000

Current price of 7814Z-1-023E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

7814Z-1-023E Specifications
Type Description
Series:7814
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Circuit:SPDT
Number of Positions:2
Current Rating (Amps):100mA
Voltage Rating:16VAC/DC
Actuator Type:Rotary for Tool
Actuator Level:Flush, Recessed
Contact Material:-
Contact Finish:-
Height Above Board:0.226" (5.74mm)
Mounting Type:Surface Mount, Right Angle
Termination Style:J Lead
Pitch:-
Washable:No
Features:-
Operating Temperature:-55°C ~ 125°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 219-8LPSR

219-8LPSR

SWITCH SLIDE DIP SPST 100MA 20V

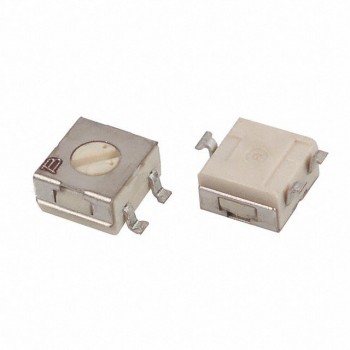

HOT 7814G-1-023E
