TY-145P

TY-145P

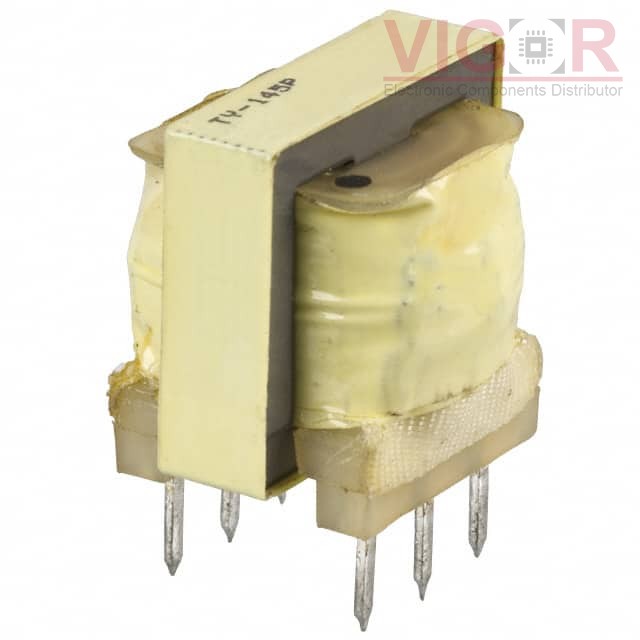

Image is for reference,
please contact us to get the real picture

Part No :

TY-145P

Manufacturer
Triad Magnetics
Description
TRANSF 600 AUDIO CTAP/600 CTAP
Catalog
Audio Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
TY-145P PDF
Availability
5575 pieces
Unit Price
$5.82000

Current price of TY-145P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TY-145P Specifications
Type Description
Series:TY
Package:Bulk
Part Status:Active
Turns Ratio - Primary:Secondary:1:1
Impedance - Primary (Ohms):600CT
Impedance - Secondary (Ohms):600CT
DC Resistance (DCR) - Primary:44Ohm
DC Resistance (DCR) - Secondary:58Ohm
Transformer Type:Data/Voice Coupling
Frequency Range:200Hz ~ 15kHz
Frequency Response:±2dB
Voltage - Isolation:1500V
Insertion Loss:1.5dB
Return Loss:26dB
Power Level:100mW
Operating Temperature:-20°C ~ 85°C
Approval Agency:-
Mounting Type:Through Hole
Size / Dimension:0.812" L x 0.700" W (20.62mm x 17.78mm)
Height - Seated (Max):0.740" (18.80mm)
Termination Style:PC Pin
