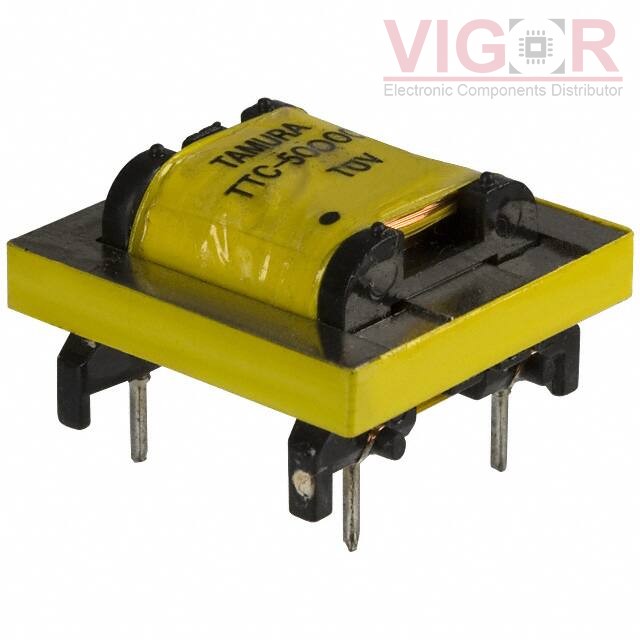

TTC-5000

Image is for reference,
please contact us to get the real picture

Part No :: TTC-5000

Manufacturer: Tamura

Description: TRANSFORM MODEM COUP 600:301 OHM

Catalog: Audio Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: TTC-5000 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of TTC-5000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TTC-5000 Specifications

Type	Description
Series:	TTC
Package:	Bulk
Part Status:	Obsolete
Turns Ratio - Primary:Secondary:	1:1
Impedance - Primary (Ohms):	600
Impedance - Secondary (Ohms):	301
DC Resistance (DCR) - Primary:	150Ohm
DC Resistance (DCR) - Secondary:	150Ohm
Transformer Type:	Data/Voice Coupling
Frequency Range:	200Hz ~ 4kHz
Frequency Response:	±0.25dB
Voltage - Isolation:	1875VRMS @ 1 Second
Insertion Loss:	3.25dB Max @ 1kHz
Return Loss:	20dB Min @ 1kHz
Power Level:	-
Operating Temperature:	-
Approval Agency:	UL1950, UL60950, EN60950
Mounting Type:	Through Hole
Size / Dimension:	0.886" L x 0.909" W (22.50mm x 23.10mm)
Height - Seated (Max):	0.543" (13.80mm)
Termination Style:	PC Pin

Please confirm the specifications of the products when ordering.
