TTC-5009

TTC-5009

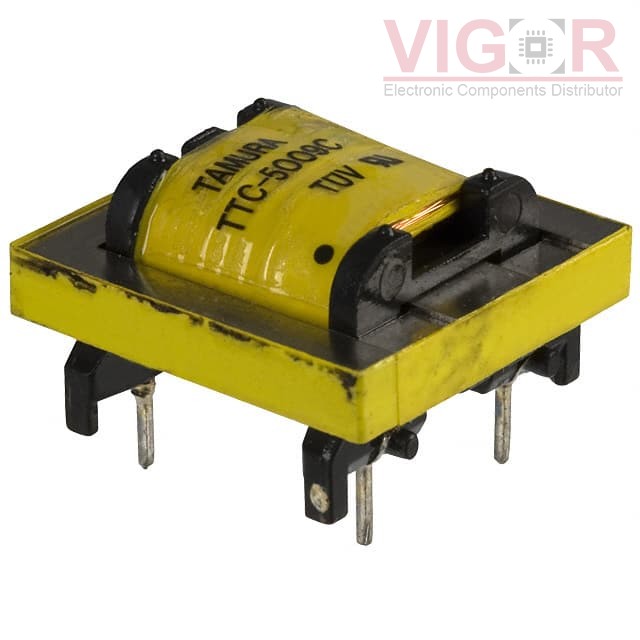

Image is for reference,
please contact us to get the real picture

Part No :

TTC-5009

Manufacturer
Tamura
Description
TRANSFORMER COUPLING 600:530 OHM
Catalog
Audio Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
TTC-5009 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of TTC-5009 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TTC-5009 Specifications
Type Description
Series:TTC
Package:Bulk
Part Status:Obsolete
Turns Ratio - Primary:Secondary:1:1
Impedance - Primary (Ohms):600
Impedance - Secondary (Ohms):530
DC Resistance (DCR) - Primary:46Ohm
DC Resistance (DCR) - Secondary:45Ohm
Transformer Type:-
Frequency Range:200Hz ~ 4kHz
Frequency Response:±0.25dB
Voltage - Isolation:1875VRMS @ 1 Second
Insertion Loss:1dB Max @ 1kHz
Return Loss:20dB Min @ 1kHz
Power Level:-
Operating Temperature:-
Approval Agency:UL1950, UL60950, EN60950
Mounting Type:Through Hole
Size / Dimension:0.886" L x 0.909" W (22.50mm x 23.10mm)
Height - Seated (Max):0.543" (13.80mm)
Termination Style:PC Pin
