B82801B0324A040

B82801B0324A040

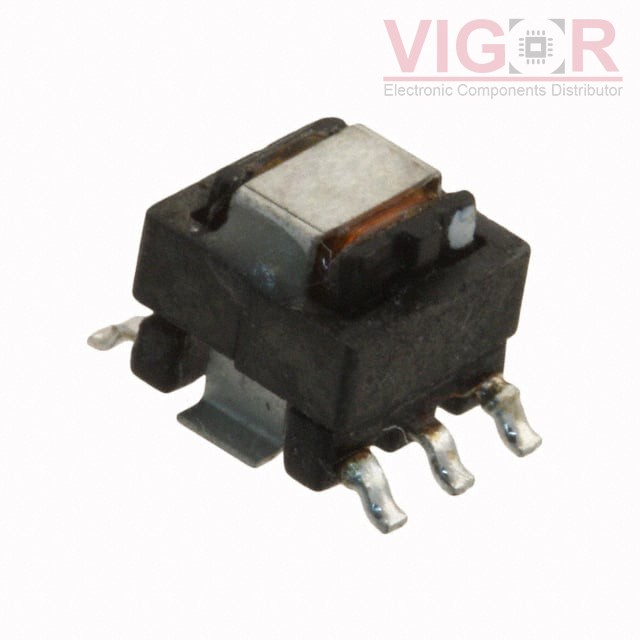

Image is for reference,
please contact us to get the real picture

Part No :

B82801B0324A040

Manufacturer
TDK EPCOS
Description
CURR SENSE XFMR 1:40 SMD
Catalog
Current Sense Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 23 - Jul 27 2025
DataSheet
B82801B0324A040 PDF
Availability
1042 pieces
Unit Price
$2.51000

Current price of B82801B0324A040 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82801B0324A040 Specifications
Type Description
Series:B82801B
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Frequency Range:50kHz ~ 1MHz
Type:Invasive
Current Rating (Amps):1:40
Inductance:-
ET (Volt-Time):0.8mOhm Primary, 1.14Ohm Secondary
Turns Ratio - Primary:Secondary:-
Current Ratio:Surface Mount
DC Resistance (DCR):0.280" L x 0.320" W (7.11mm x 8.13mm)
Ratings:0.200" (5.08mm)
Mounting Type:Gull Wing
