B82801C0565A100

B82801C0565A100

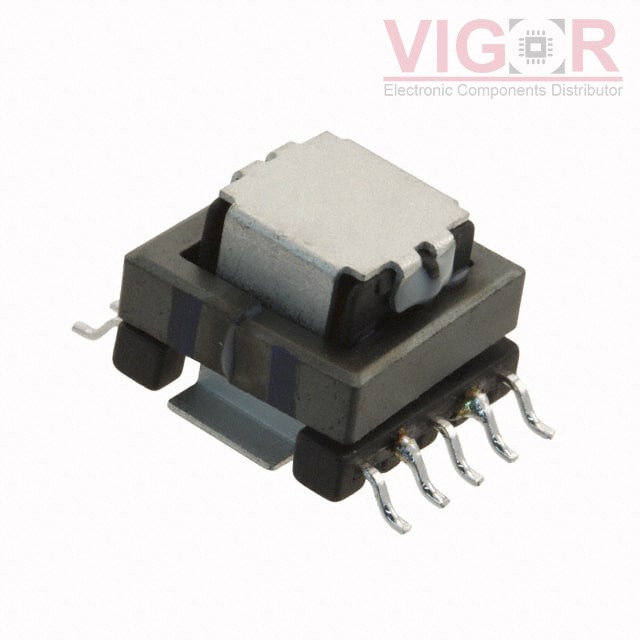

Image is for reference,
please contact us to get the real picture

Part No :

B82801C0565A100

Manufacturer
TDK EPCOS
Description
CURR SENSE XFMR 1:100 SMD
Catalog
Current Sense Transformers
Shipped from
HK warehouse
Expected Shipping Date
Aug 18 - Aug 22 2025
DataSheet
B82801C0565A100 PDF
Availability
603 pieces
Unit Price
$3.26000

Current price of B82801C0565A100 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82801C0565A100 Specifications
Type Description
Series:B82801C
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Frequency Range:50kHz ~ 500kHz
Type:Invasive
Current Rating (Amps):-
Inductance:1:100
ET (Volt-Time):-
Turns Ratio - Primary:Secondary:0.28mOhm Primary, 1Ohm Secondary
Current Ratio:-
DC Resistance (DCR):Surface Mount
Ratings:0.560" L x 0.530" W (14.22mm x 13.46mm)
Mounting Type:0.394" (10.00mm)
Size / Dimension:Gull Wing
