VPT36-690

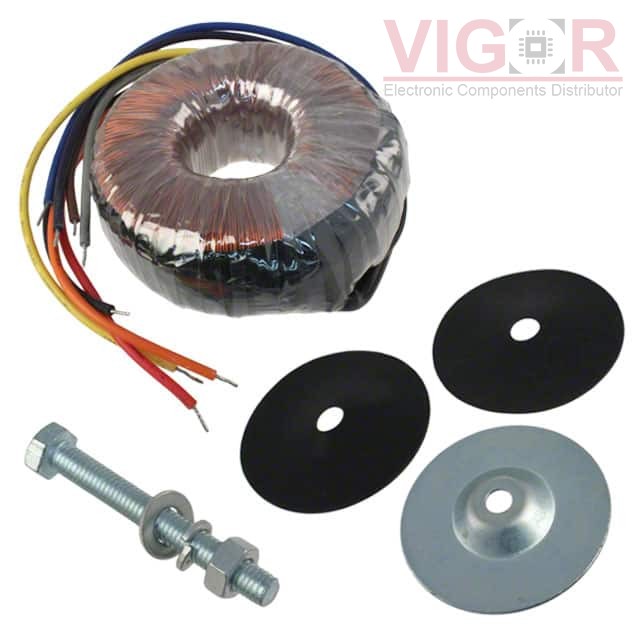

Image is for reference,
please contact us to get the real picture

Part No :: VPT36-690

Manufacturer: Triad Magnetics

Description: PWR XFMR TORO 25VA CHAS MT

Catalog: Power Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: VPT36-690 PDF

Availability: 5 pieces

Unit Price: ~~$18.34000~~

Current price of VPT36-690 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

VPT36-690 Specifications

Type	Description
Series:	Chassis Mount: World Series™
Package:	Box
Part Status:	Active
Type:	Toroidal
Voltage - Primary:	115V, 230V
Voltage - Secondary (Full Load):	Parallel 18V, Series 36V
Current - Output (Max):	Parallel 1.38A, Series 690mA
Primary Winding(s):	Dual
Secondary Winding(s):	Dual
Center Tap:	No
Power - Max:	25VA
Mounting Type:	Chassis Mount
Termination Style:	Wire Leads
Size / Dimension:	71.00mm Dia x 32.00mm W
Height - Seated (Max):	34.0mm
Voltage - Isolation:	4000Vrms
Weight:	0.882 lb (400.07 g)

Please confirm the specifications of the products when ordering.
