750313626

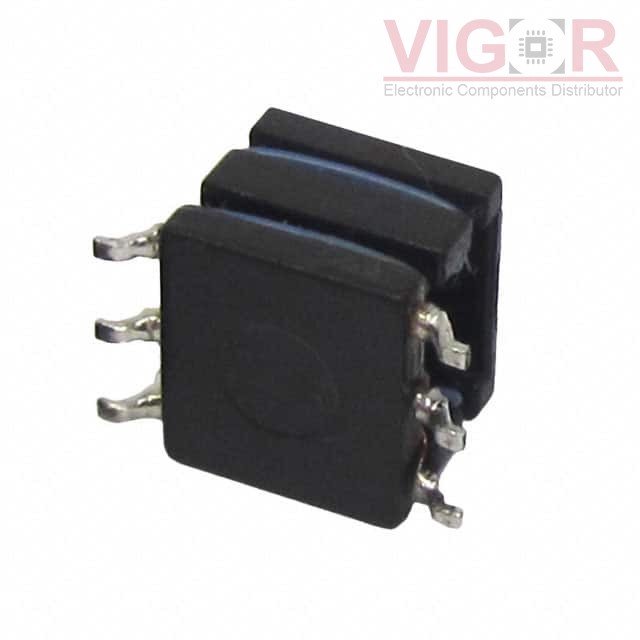

Image is for reference,
please contact us to get the real picture

Part No :: 750313626

Manufacturer: Würth Elektronik Midcom

Description: TRANSFORMER SMD

Catalog: Switching Converter, SMPS Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: 750313626 PDF

Availability: 0 pieces

Unit Price: ~~$3.25000~~

Current price of 750313626 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

750313626 Specifications

Type	Description
Series:	WE-PP, MID-PPTI
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	For DC/DC Converters
Applications:	Forward, Push-Pull Converters
Intended Chipset:	SN6501
Chipset Manufacturer:	Texas Instruments
Voltage - Primary:	-
Voltage - Auxiliary:	-
Voltage - Isolation:	5000Vrms
Inductance @ Frequency:	340µH @ 100kHz
Frequency:	-
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Size / Dimension:	0.360" L x 0.315" W (9.14mm x 8.00mm)
Height - Seated (Max):	0.305" (7.75mm)
Footprint:	0.360" L x 0.500" W (9.14mm x 12.70mm)
Style:	-
