750311620

750311620

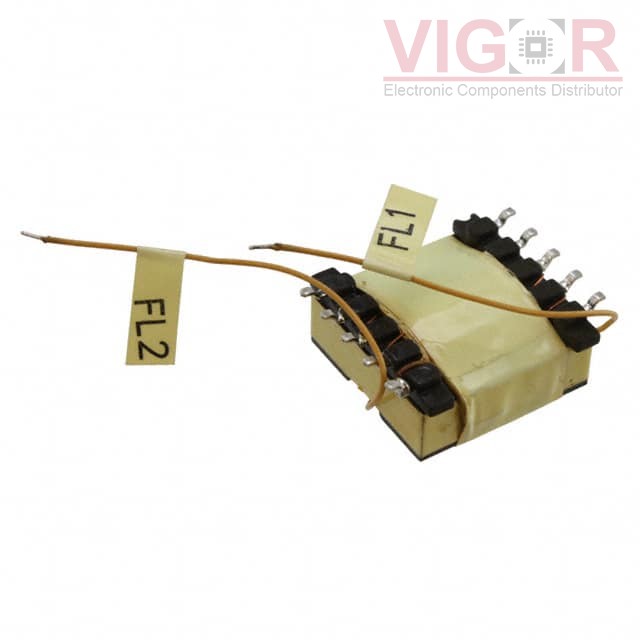

Image is for reference,
please contact us to get the real picture

Part No :

750311620

Manufacturer
Würth Elektronik Midcom
Description
TRANS FLYBACK NCL30000 1.90MH
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
750311620 PDF
Availability
0 pieces
Unit Price
$10.67700

Current price of 750311620 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

750311620 Specifications
Type Description
Series:WE-UNIT, MID-OLON
Package:Tray
Part Status:Active
Type:For AC/DC Converters
Applications:LED Drivers, AC/DC SMPS
Intended Chipset:NCL30000
Chipset Manufacturer:On Semiconductor
Voltage - Primary:30 ~ 190V
Voltage - Auxiliary:19V @ 5mA
Voltage - Isolation:4500Vrms
Inductance @ Frequency:1.9mH @ 10kHz
Frequency:53 ~ 120kHz
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Size / Dimension:-
Height - Seated (Max):0.435" (11.05mm)
Footprint:0.910" L x 1.020" W (23.11mm x 25.91mm)
Style:-
