PA5131.003NLT

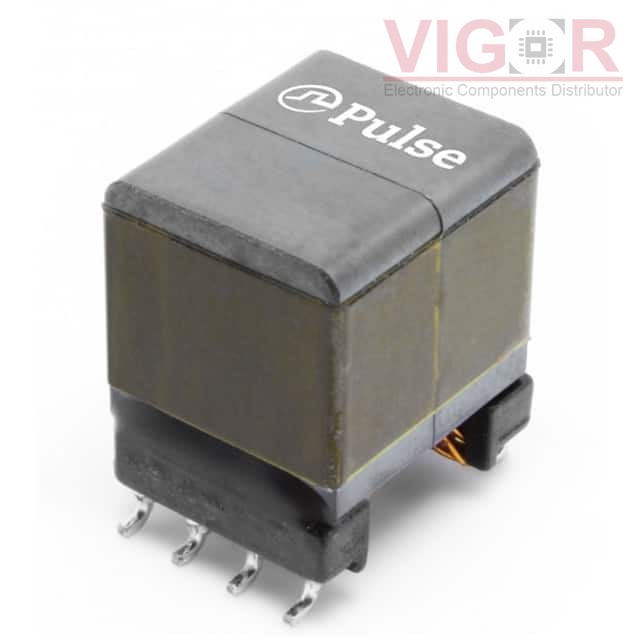

Image is for reference,
please contact us to get the real picture

Part No :: PA5131.003NLT

Manufacturer: PulseLarsen Antenna

Description: TRANSFORMER, FORWARD, EP10 PLUS,

Catalog: Switching Converter, SMPS Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jul 02 - Jul 06 2025

DataSheet: PA5131.003NLT PDF

Availability: 123 pieces

Unit Price: ~~$3.34000~~

Current price of PA5131.003NLT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PA5131.003NLT Specifications

Type	Description
Series:	PA5131XXXNL
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	For DC/DC Converters
Applications:	Forward, Push-Pull Converters
Intended Chipset:	-
Chipset Manufacturer:	-
Voltage - Primary:	33 ~ 57V
Voltage - Auxiliary:	-
Voltage - Isolation:	2250V
Inductance @ Frequency:	-
Frequency:	200kHz
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Size / Dimension:	0.610" L x 0.512" W (15.50mm x 13.00mm)
Height - Seated (Max):	0.610" (15.50mm)
Footprint:	0.610" L x 0.512" W (15.50mm x 13.00mm)
Style:	Wirewound
