750317236

750317236

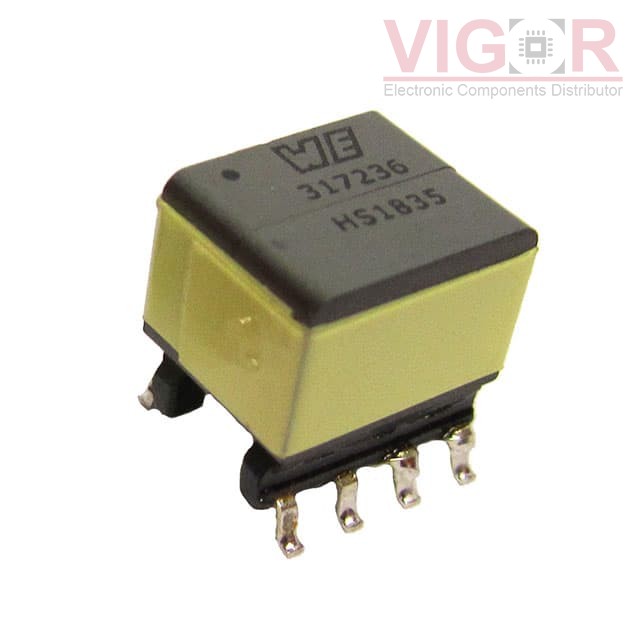

Image is for reference,
please contact us to get the real picture

Part No :

750317236

Manufacturer
Würth Elektronik Midcom
Description
FLYBACK TRANSFORMER EP7 SMT; UI
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
750317236 PDF
Availability
285 pieces
Unit Price
$2.43000

Current price of 750317236 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

750317236 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:For DC/DC Converters
Applications:Flyback Converters
Intended Chipset:-
Chipset Manufacturer:Maxim Integrated
Voltage - Primary:18 ~ 60VDC
Voltage - Auxiliary:-
Voltage - Isolation:1500Vrms
Inductance @ Frequency:84µH @ 100kHz
Frequency:143.5kHz
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Size / Dimension:0.385" L x 0.374" W (9.78mm x 9.50mm)
Height - Seated (Max):0.415" (10.54mm)
Footprint:0.324" L x 0.360" W (8.23mm x 9.14mm)
Style:Wirewound
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

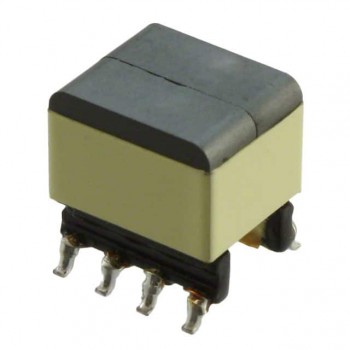

HOT 750311780

750311780

TRANS FLYBACK TPS55010 SMD

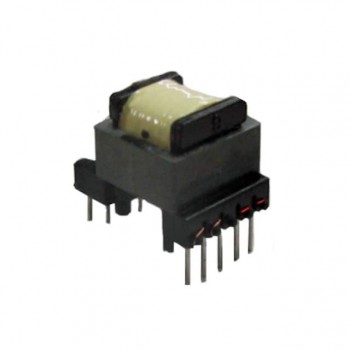

HOT PA2718NL

PA2718NL

XFMR FLYBACK CONV CONFIG T/H

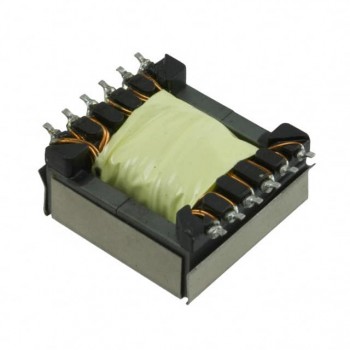

HOT 750311595
