PH0811CNL

PH0811CNL

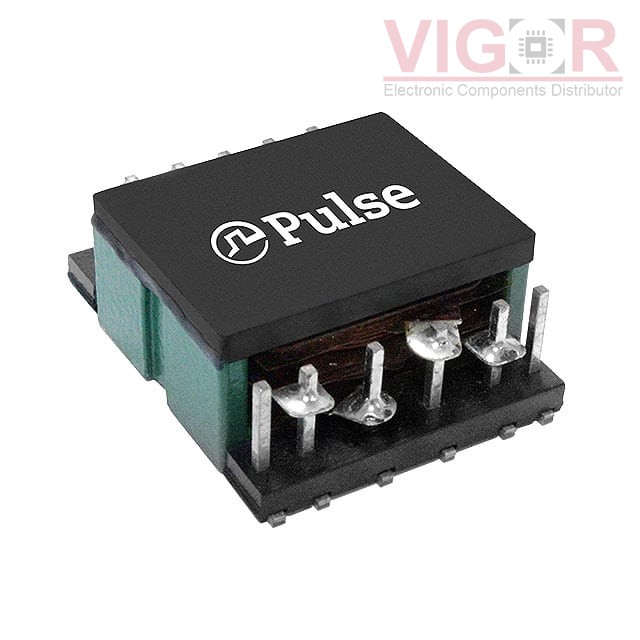

Image is for reference,
please contact us to get the real picture

Part No :

PH0811CNL

Manufacturer
PulseLarsen Antenna
Description
XFMR DC/DC CONV SMD
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
PH0811CNL PDF
Availability
0 pieces
Unit Price
$9.40000

Current price of PH0811CNL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PH0811CNL Specifications
Type Description
Series:PH08XXCNL
Package:Tray
Part Status:Active
Type:For DC/DC Converters
Applications:-
Intended Chipset:-
Chipset Manufacturer:-
Voltage - Primary:-
Voltage - Auxiliary:-
Voltage - Isolation:1500Vrms
Inductance @ Frequency:-
Frequency:200 ~ 700kHz
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Size / Dimension:0.850" L x 0.970" W (21.59mm x 24.65mm)
Height - Seated (Max):0.368" (9.35mm)
Footprint:0.850" L x 0.970" W (21.59mm x 24.65mm)
Style:Planar
