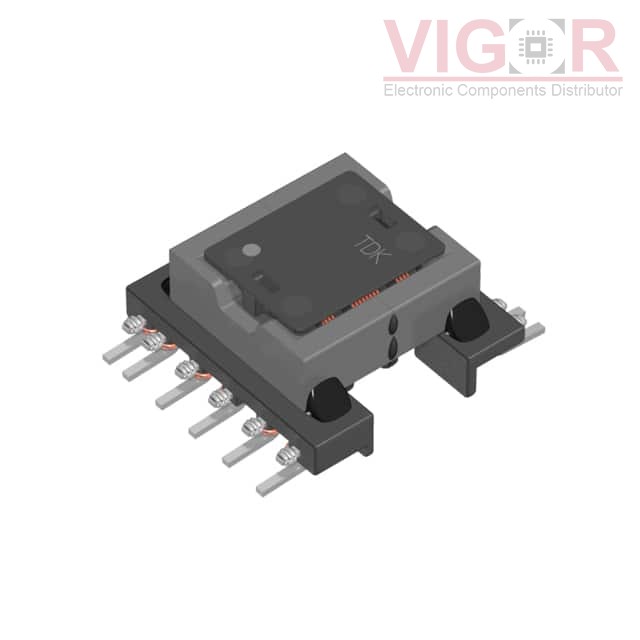

VGT15EFD-200S3A6

Image is for reference,
please contact us to get the real picture

Part No :: VGT15EFD-200S3A6

Manufacturer: TDK Corporation

Description: TRANSFORMERS FOR IGBT/FET

Catalog: Switching Converter, SMPS Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jul 26 - Jul 30 2025

DataSheet: VGT15EFD-200S3A6 PDF

Availability: 205 pieces

Unit Price: ~~$11.64000~~

Current price of VGT15EFD-200S3A6 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

VGT15EFD-200S3A6 Specifications

Type	Description
Series:	VGT
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	For AC/DC Converters
Applications:	Flyback Converters
Intended Chipset:	-
Chipset Manufacturer:	-
Voltage - Primary:	-
Voltage - Auxiliary:	-
Voltage - Isolation:	2600Vrms
Inductance @ Frequency:	8µH @ 100kHz
Frequency:	-
Operating Temperature:	-40°C ~ 130°C
Mounting Type:	Surface Mount
Size / Dimension:	0.787" L x 0.709" W (20.00mm x 18.00mm)
Height - Seated (Max):	0.402" (10.20mm)
Footprint:	0.945" L x 0.787" W (24.00mm x 20.00mm)
Style:	Wirewound

Please confirm the specifications of the products when ordering.
