ECO2020SEO-D03V016

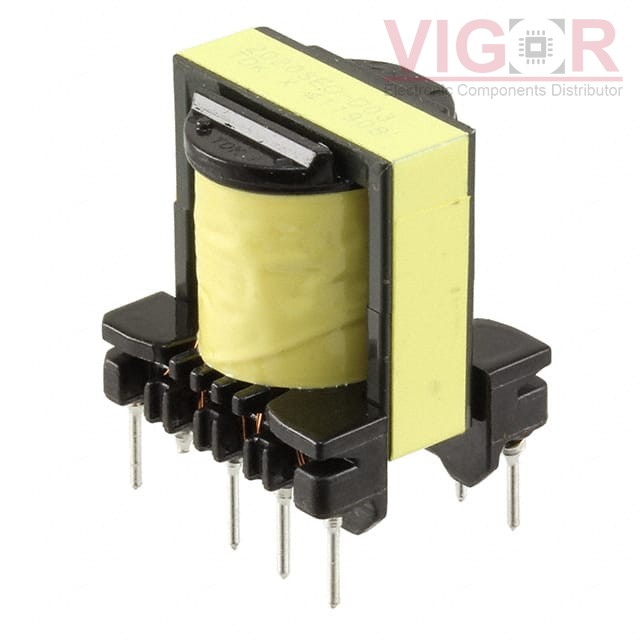

Image is for reference,
please contact us to get the real picture

Part No :: ECO2020SEO-D03V016

Manufacturer: TDK Corporation

Description: INDUCTOR/XFRMR

Catalog: Switching Converter, SMPS Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jul 25 - Jul 29 2025

DataSheet: ECO2020SEO-D03V016 PDF

Availability: 0 pieces

Unit Price: ~~$4.44800~~

Current price of ECO2020SEO-D03V016 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ECO2020SEO-D03V016 Specifications

Type	Description
Series:	ECO
Package:	Bulk
Part Status:	Active
Type:	For AC/DC Converters
Applications:	Flyback Converters
Intended Chipset:	-
Chipset Manufacturer:	-
Voltage - Primary:	85 ~ 276V
Voltage - Auxiliary:	12V @ 850mA, 17V @ 150mA
Voltage - Isolation:	3600Vrms
Inductance @ Frequency:	764µH @ 100kHz
Frequency:	124kHz
Operating Temperature:	-30°C ~ 120°C
Mounting Type:	Through Hole
Size / Dimension:	0.886" L x 0.768" W (22.50mm x 19.50mm)
Height - Seated (Max):	1.063" (27.00mm)
Footprint:	0.886" L x 0.768" W (22.50mm x 19.50mm)
Style:	-
