760895431

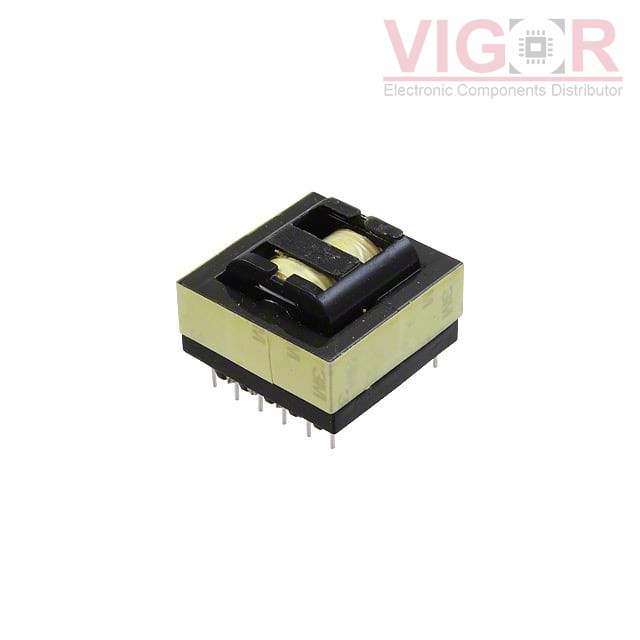

Image is for reference,
please contact us to get the real picture

Part No :

760895431

Manufacturer
Würth Elektronik Midcom
Description
WE-LLCR RESONANT CONVERTER 600UH
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
760895431 PDF
Availability
3 pieces
Unit Price
$16.46000

Current price of 760895431 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:WE-LLCR
Package:Tray
Part Status:Active
Type:For AC/DC Converters
Applications:Resonant Converters
Intended Chipset:-
Chipset Manufacturer:-
Voltage - Primary:360 ~ 400V
Voltage - Auxiliary:-
Voltage - Isolation:4000Vrms
Inductance @ Frequency:600µH @ 100kHz
Frequency:70 ~ 120kHz
Operating Temperature:-40°C ~ 125°C
Mounting Type:Through Hole
Size / Dimension:1.417" L x 1.417" W (36.00mm x 36.00mm)
Height - Seated (Max):1.024" (26.00mm)
Footprint:1.417" L x 1.417" W (36.00mm x 36.00mm)
Style:-
