760390013

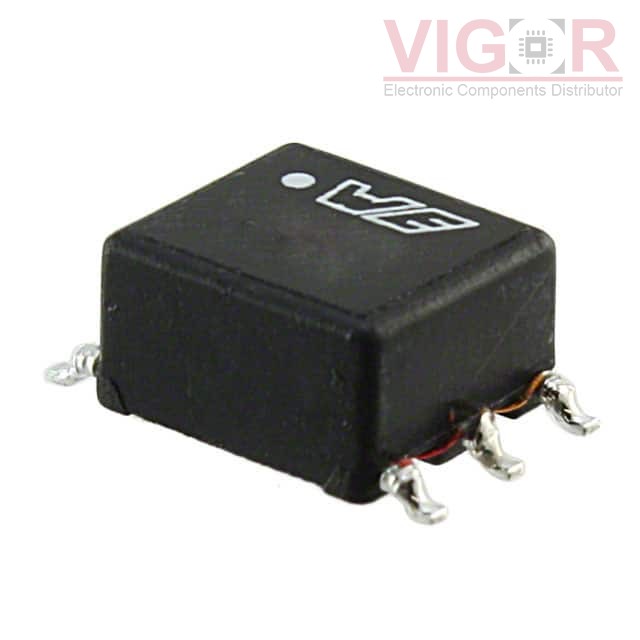

Image is for reference,
please contact us to get the real picture

Part No :: 760390013

Manufacturer: Würth Elektronik Midcom

Description: TRANSFORMER 475UH SMD

Catalog: Switching Converter, SMPS Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jul 27 - Jul 31 2025

DataSheet: 760390013 PDF

Availability: 1642 pieces

Unit Price: ~~$1.90000~~

Current price of 760390013 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

760390013 Specifications

Type	Description
Series:	WE-PP, MID-PPTI
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	For DC/DC Converters
Applications:	Forward, Push-Pull Converters
Intended Chipset:	SN6501
Chipset Manufacturer:	Texas Instruments
Voltage - Primary:	-
Voltage - Auxiliary:	-
Voltage - Isolation:	3125Vrms
Inductance @ Frequency:	475µH @ 10kHz
Frequency:	10kHz
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Size / Dimension:	0.265" L x 0.281" W (6.73mm x 7.14mm)
Height - Seated (Max):	0.170" (4.32mm)
Footprint:	0.265" L x 0.395" W (6.73mm x 10.05mm)
Style:	-

Please confirm the specifications of the products when ordering.
